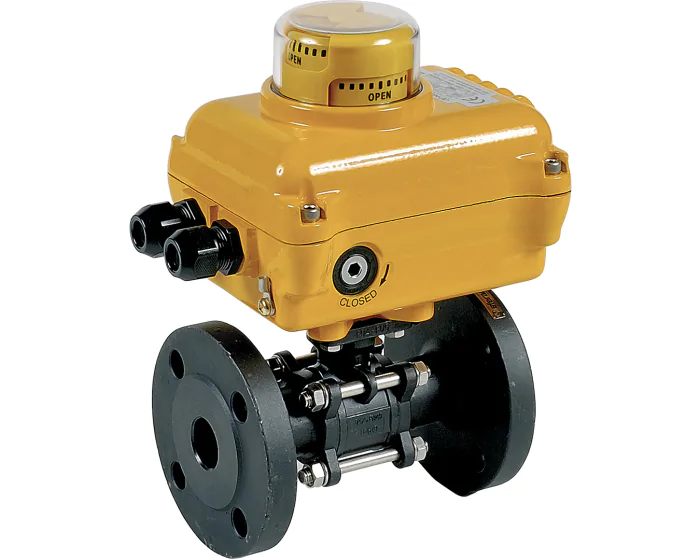

The 710 XS 3-piece body ball valve has a 1.0619 carbon steel body, stainless steel ball and PTFE/stainless steel seats. SA/NA electric actuator. PS: 40 bar, TS: -20/+200°C. Flanged attachments PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 130.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 6 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' SA 05 | 271312023010X | S1005985 |
€598.64
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' SA 05 | 271313023010X | S1005986 |
€604.66
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' SA 05 | 271314023010X | S1005987 |
€604.66
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 SA 05 | 271315023010X | S1005988 |
€641.29
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 SA 05 | 271316023010X | S1005989 |
€715.71
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' SA 05 | 271317023010X | S1005990 |
€799.47
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' NA 15 | 271320023130X | S1005993 |
€2,206.61
(excl. btw)
|
add to cart |
